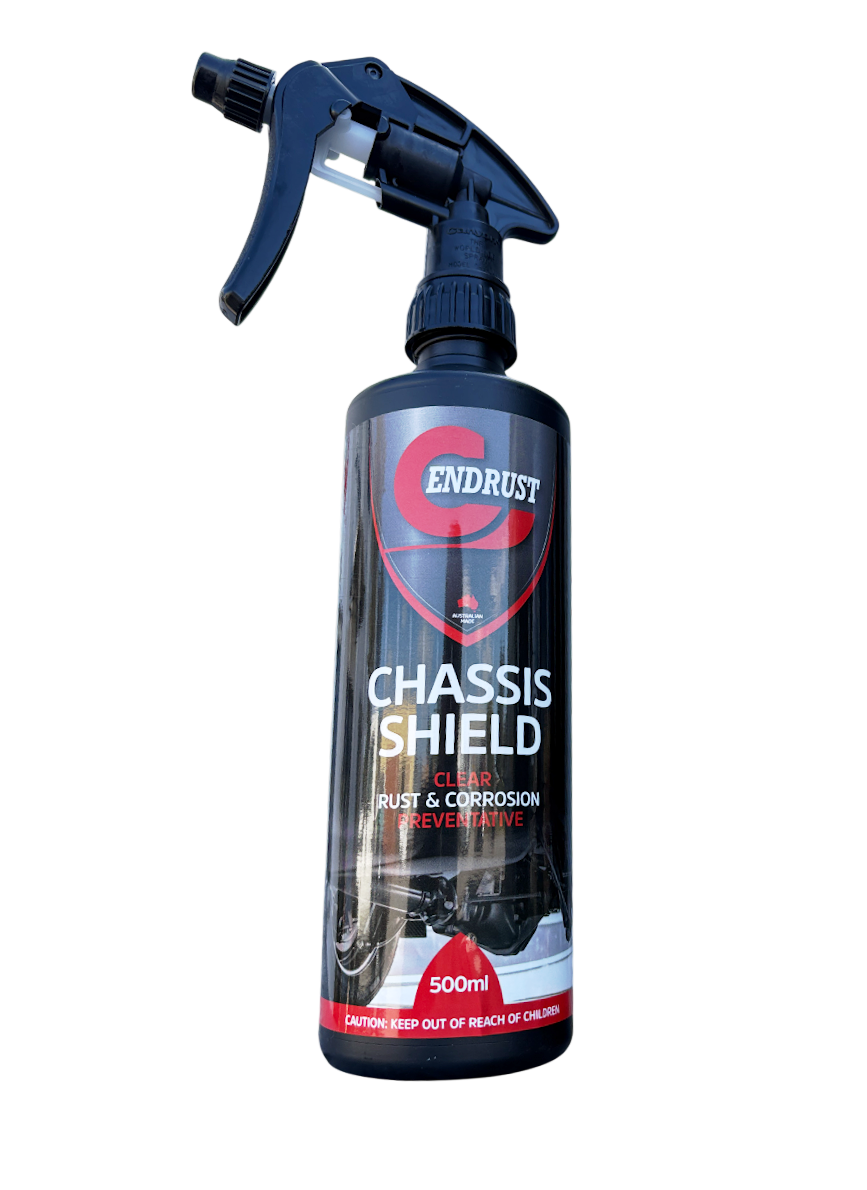

ChassisShield-20L

Endrust Chassis Shield

SizePrice
20L$440.00

ENDRUST® Chassis Shield is a professional-grade clear rust and corrosion preventative designed to protect exposed metal surfaces on vehicles, trailers, machinery and industrial equipment. It forms a durable protective barrier against moisture, road salts and environmental contaminants while preserving the natural appearance of the treated surface.

Unlike traditional non-drying cavity waxes, Chassis Shield dries to a firm, low-tack, low-gloss protective film that resists dirt build-up and normal weather exposure. Ideal for chassis rails, suspension components, trailers and exposed steelwork where effective corrosion protection is required without a heavy black coating.

Typical Applications: Vehicle chassis and underbodies • Suspension components • Trucks and trailers • Agricultural machinery • Mining equipment • Marine trailers • Exposed steelwork

Size: 20L | Colour: Clear Protective Film | Finish: Low-Gloss, Low-Tack

SKU CHCS Category Brand Endrust

Downloads

ENDRUST® Chassis Shield — Clear Rust & Corrosion Preventative

Durable Clear Protection for Exposed Chassis and Metal Surfaces

ENDRUST® Chassis Shield is a professional-grade clear corrosion preventative developed for vehicles, trailers, machinery and industrial equipment exposed to demanding Australian conditions.

It forms a durable protective barrier against moisture, road salts and environmental contaminants while preserving the natural appearance of the underlying metal or painted surface.

Unlike traditional cavity waxes that remain soft and continue to creep, Chassis Shield is designed for exposed external surfaces where a firmer, cleaner protective coating is preferred.

Features & Benefits

  • Clear corrosion protection: Helps preserve the appearance of bare and painted metal.
  • Durable protective film: Dries to a firm, low-tack, low-gloss finish.
  • Moisture resistance: Helps protect against water, road salts and environmental contaminants.
  • Reduced dirt build-up: Low-tack finish is suitable for exposed chassis and equipment surfaces.
  • Versatile application: Brush, roller, trigger spray or conventional spray equipment.
  • Australian Made.

Recommended Applications

Chassis Shield is suitable for vehicle chassis rails, cross-members, floor pans, suspension components, truck and trailer chassis, agricultural machinery, mining equipment and marine trailers.

It may also be used for temporary protection of suitable fabricated steel during storage and transport.

Technical Information

Property Specification
Product Type Clear corrosion preventative
Appearance Amber-brown liquid; clear protective film
Finish Low-gloss, low-tack
Coverage Approximately 25 m²/L
Number of Coats 1–2
Touch Dry Approximately 6–12 hours
Hard Dry 24 hours at 25°C
Application Brush, roller, trigger or spray
Packaging 20L

Surface Preparation & Application

Surfaces must be clean, dry and free from mud, grease, dirt and loose rust.

Where significant corrosion is present, remove loose rust and consider pretreatment with ENDRUST® RCP150 Rust Converter, Primer & Sealer.

Apply an even coat by brush, roller or suitable spray equipment. A second coat after approximately 4–6 hours is recommended where additional protection is required.

Allow the coating to cure before heavy use or pressure washing.

Chassis Shield is intended for exposed external surfaces. For enclosed cavities requiring a permanently waxy treatment, ENDRUST® ML602 is the more appropriate product.

Shipping Weight N/A
Shipping Dimensions N/A
PRODUCT SIZE

20L
