Star S-770 10L Protective Coatings Kit

Star S-770 10L Protective Coatings Kit

The Star S-770 10L Protective Coatings Kit is a complete pressure pot spray system designed for applying protective coatings, epoxies, primers, sealers, clear coats and industrial coatings.

Combining a 10-litre pressure pot, Star S-770 Spray Gun Head and 10m Twin Fluid & Air Hose Set, the system provides excellent atomisation, reliable material flow and professional finish quality across a wide range of coating products.

Unlike dedicated rustproofing systems designed primarily for cavity waxes and underbody coatings, the Star S-770 system is optimised for protective coatings where finish quality, atomisation and spray pattern control are important.

Recommended Endrust Coatings

The Star S-770 10L Protective Coatings Kit is particularly well suited to:

• Endrust PSXCLEAR 2K Clear Epoxy
• Endrust RXCLEAR Protective Coating
• Endrust RXBLACK Protective Coating
• Endrust UB702 High Build Epoxy

Recommended Fluid Tip Sizes

• 1.5mm Tip – PSXCLEAR, RXCLEAR and RXBLACK.
• 1.7mm Tip – UB702 High Build Epoxy.
• 2.0mm Tip – Medium-build protective coatings and general-purpose applications.
• 2.5mm – 3.0mm Tip – High-build products including UB302B Underbody Coating.

While the Star S-770 can be configured to spray UB302B Underbody Coating using a larger fluid tip, dedicated rustproofing systems such as the RP32 and Lemmer Rustproofing Kits generally provide better performance for underbody coatings and cavity wax applications.

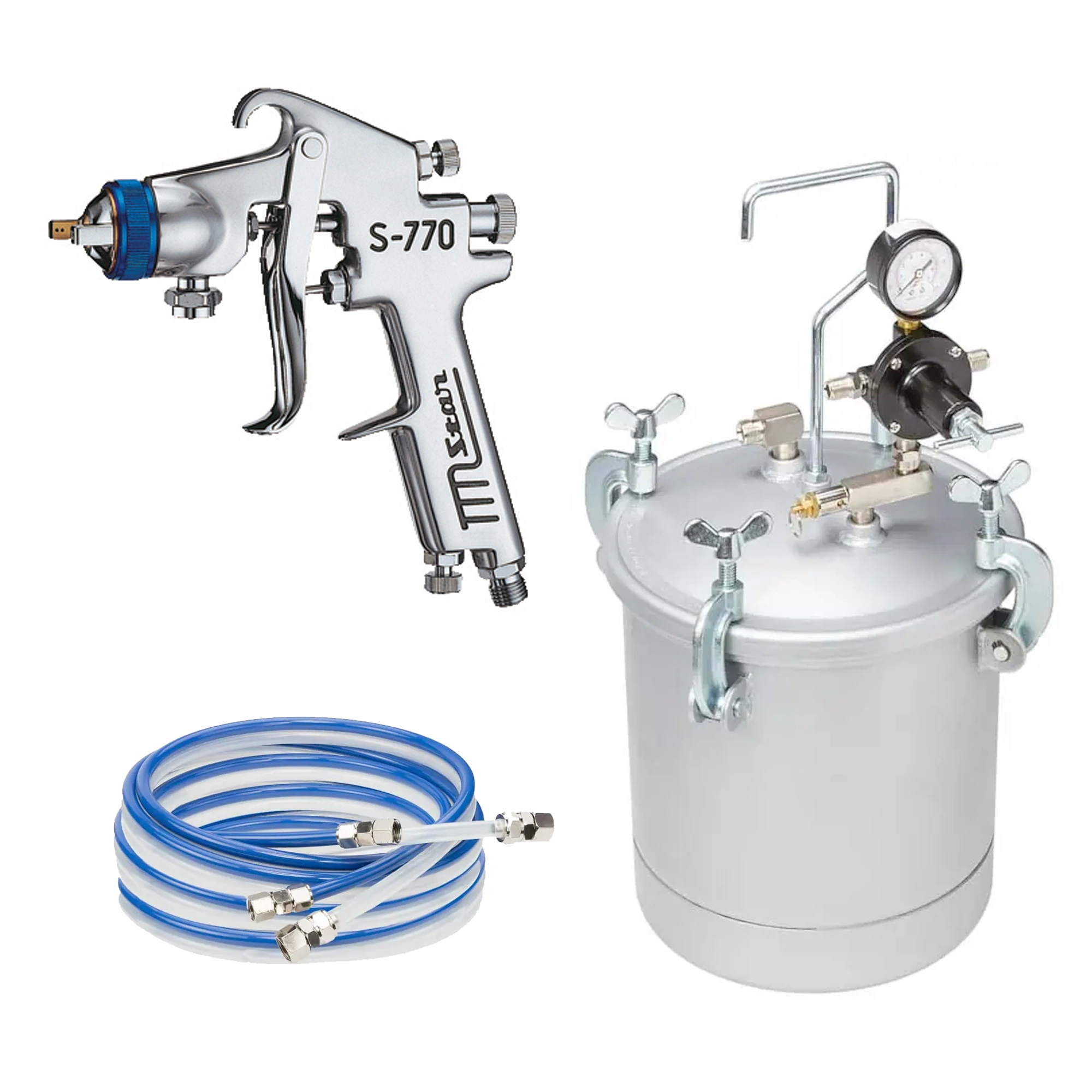

Kit Includes

• 10L Pressure Pot
• Star S-770 Spray Gun Head
• 10m Twin Fluid & Air Hose Set

Star S-770 Spray Gun Features

• Stainless steel needle and nozzle assembly
• Adjustable fan control
• Choice of fluid tip sizes
• Excellent atomisation and finish quality
• Suitable for a wide range of coating products

Typical Applications

• PSXCLEAR protective coatings
• RXCLEAR and RXBLACK applications
• UB702 epoxy coatings
• Industrial maintenance coatings
• Primers and sealers
• Automotive refinishing
• Agricultural equipment protection
• Marine protective coatings
• Structural steel coatings

Protective Coatings System vs Rustproofing System

The Star S-770 10L Kit is designed primarily for applying protective coatings, epoxies and clear coats where finish quality and spray control are important.

For applying cavity waxes, internal chassis rail treatments and dedicated rustproofing products such as ML602 Cavity Wax, we recommend the RP32 or Lemmer Rustproofing Systems which are specifically configured for those applications.

Many workshops operate both systems: a Star S-770 Kit for coatings such as PSXCLEAR and UB702, together with an RP32 or Lemmer Rustproofing System for cavity wax and underbody protection work.

Key Features

• Complete protective coatings pressure pot system
• Excellent atomisation and finish quality
• Suitable for PSXCLEAR, RXCLEAR, RXBLACK and UB702
• Choice of fluid tip sizes
• 10L pressure pot capacity
• Ideal for workshop and commercial applications
• Suitable for most automotive and industrial coatings
